Can-Am gaugeART PNP CAN Gauge

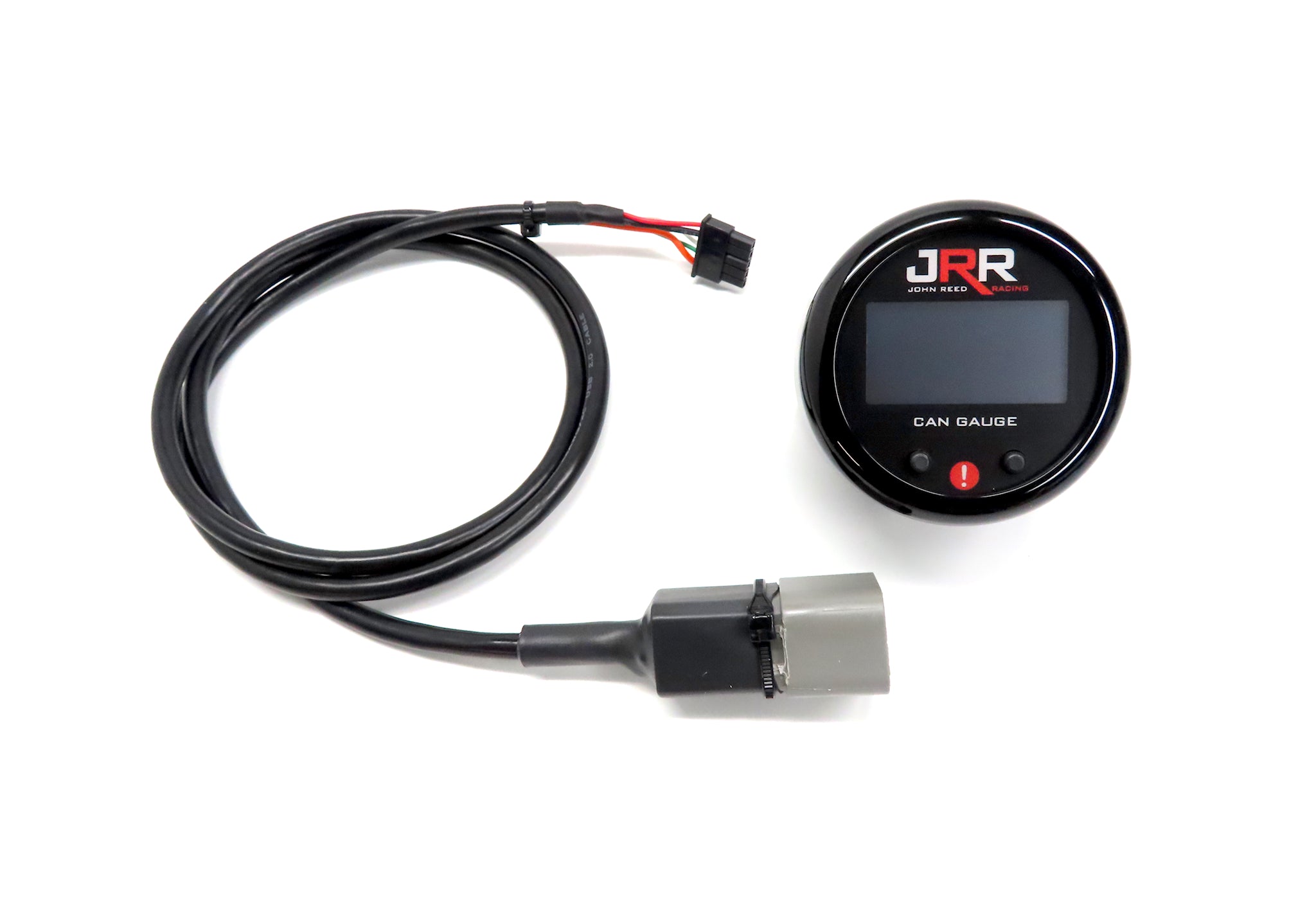

Can-Am PNP 52mm OLED CAN Gauge with Smartphone Configuration

• This PNP kit currently supports the following models:


• 2017+ Can-Am X3 - when programming gauge, use JRR MOTEC M1 500K, MOTEC M1 500K or other 500K base file for this model
• 2024+ Can-Am Maverick R - when programming gauge, use JRR MOTEC M1 500K, MOTEC M1 500K or other 500K base file for this model

• The PNP cable plugs into Can-Am/BRP "BUDS" diagnostic port.

• The gaugeART CAN Gauge is an innovative compact OLED gauge for displaying real-time data from your engine management system.

• Supported parameters such as boost pressure, air/fuel ratio, coolant temperature, fuel pressure, ethanol content, etc. can be displayed without additional sensors.

• The high contrast OLED display is bright for interior use and dims at night.

• Configure 1, 2, or 4 gauge layouts on up to 10 different pages.

• Create customizable low and high warning points, such as the coolant temperature being too high, which trigger a special warning screen and bright LED on the face of the gauge.

• Easily customize your gaugeART CAN Gauge to display the data you want to see with the included gaugeART CAN Gauge App (compatible with Android 4.4 or later and Apple iOS).

• The easy to use app works with your smartphone or tablet to wirelessly customize your gauge in minutes and is a lot easier than trying to configure your gauge with only buttons on the front!

• Up to ten configurable 1, 2, or 4 gauge layouts

• Configurable gauge name labels (ie. change “MAP” to “Boost”, etc)

• This PNP gauge kit has been tested on the JRR MoTeC M1 PNP kits. It is also compatible with many other aftermarket engine control units. It is not compatible with the OE ECU

• Choosing the incorrect CAN bit rate base template when programming the gauge will result in CAN errors and inoperative CAN devices when gauge is connected to the vehicle CAN Bus

• This gauge is not waterproof. They have worked well and been very popular for UTV use in sand and desert environments, but care should be taken when mounting the gauge so it is reasonably protected. Additionaly, use care when cleaning the vehicle and the gauge. If you ride in extreme wet and muddy conditions, this is probably not the product for you.
