MoTeC 10Hz GPS

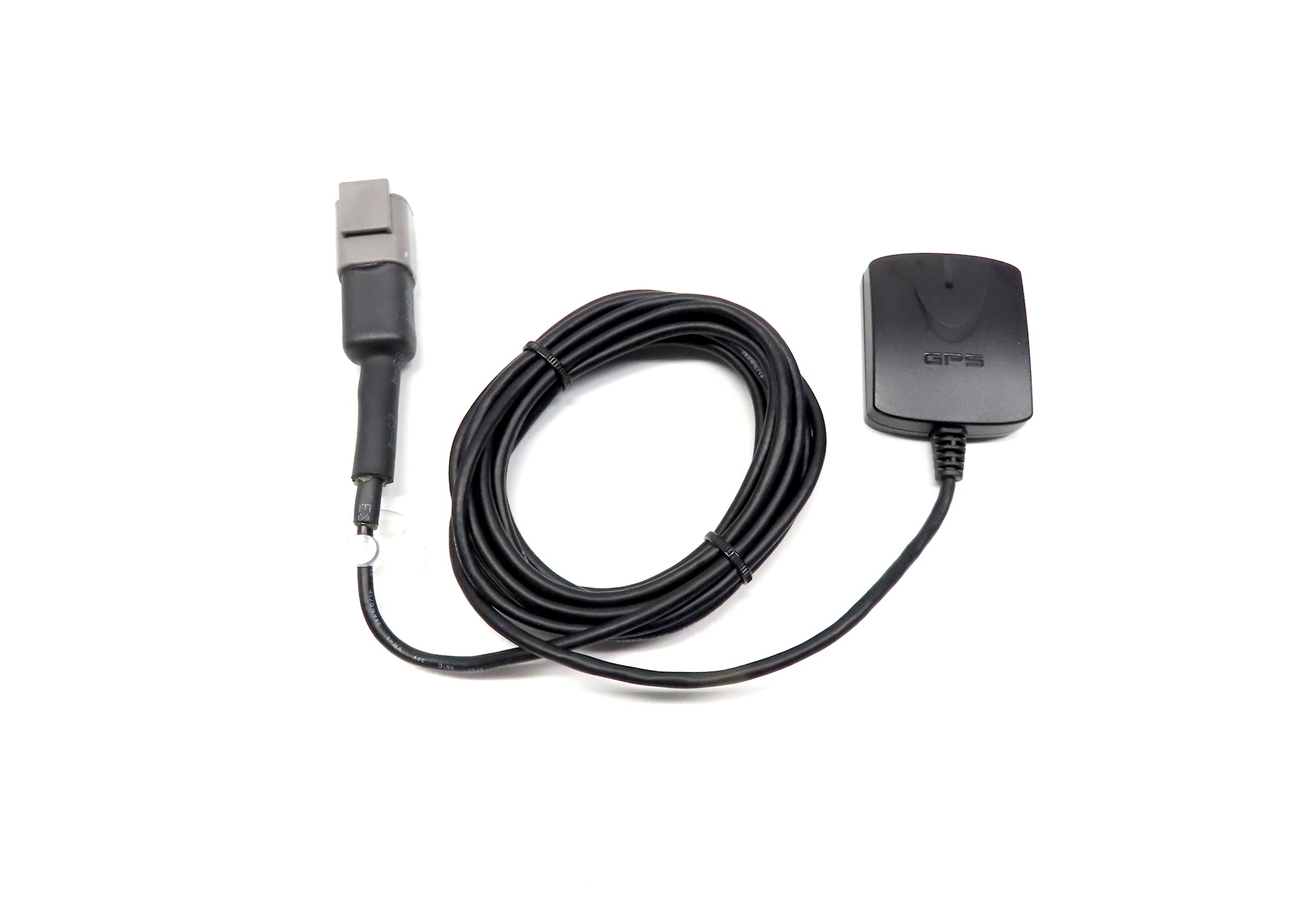

The GPS-L10 is a 10 Hz GPS which combines the electronics and antenna into one small unit. A highly sensitive receiver allows the GPS to lock onto signals even in difficult environments. It is fitted with a DTM connector and is pre-configured to be compatible with MoTeC Dash/Data Loggers. It is not compatible with MoTeC Mx00 ECUs.

This unit is suitable for speed, position and lap timing.

Compatible with

• MoTeC M1 Series ECUs
• MoTeC C125, C185
• MoTeC ACL
• MoTeC ADL3, ADL2
• MoTeC SDL3, SDL

Performance:

• Update rate 10 Hz
• 66 satellite channels
• Dynamics 4 G
• Power supply voltage 4.0 – 6.0 V

Communications:

• RS232
• Baud rate: 38400

Physical:

• Case size 48 mm x 41 mm x 14 mm
• Weight 106 g
• 1 x 4 pin Deutsch DTM, 3 m flying lead
• Built in antenna
• Mounting - magnetic base
